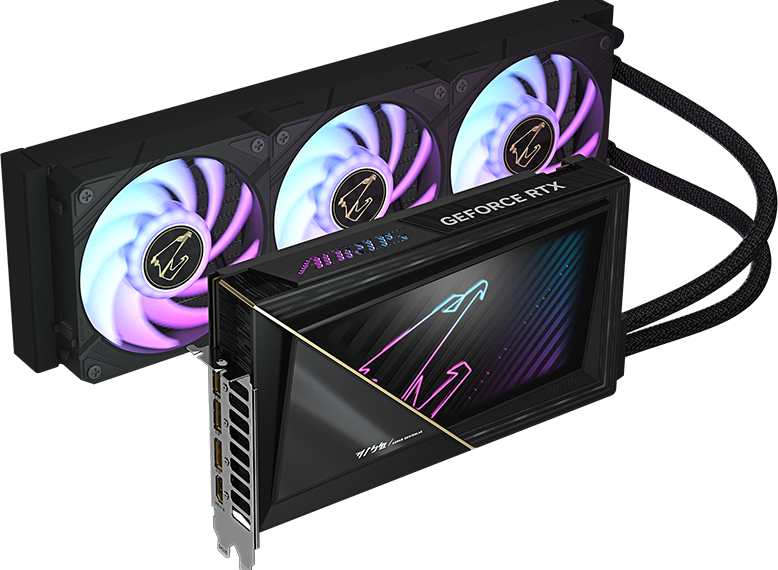

The AORUS GeForce RTX 5090 XTREME WATERFORCE 32G is a next-level GPU engineered for enthusiasts, creators, and professionals who demand the very best. Powered by NVIDIA’s Blackwell architecture, it boasts 32GB of GDDR7 memory, 21,760 CUDA cores, and a core clock of 2655 MHz, making it one of the most powerful consumer graphics cards ever produced. With its WATERFORCE all-in-one liquid cooling system, the RTX 5090 XTREME combines extreme performance with advanced cooling efficiency—ensuring stability even under the heaviest overclocks.
Key Features
- NVIDIA Blackwell architecture with 5th-gen Tensor Cores and 4th-gen Ray Tracing Cores
- 32GB GDDR7 memory with 512-bit interface and 28 Gbps speed
- WATERFORCE liquid cooling system with 360mm radiator and triple 120mm ARGB fans
- 21,760 CUDA cores for unmatched parallel processing
- 2655 MHz core clock (boosted from 2407 MHz reference)
- DLSS 4 support for AI-enhanced gaming performance
- NVIDIA Reflex 2 with Frame Warp for ultra-low latency gaming
- NVIDIA ACE and Broadcast tools for AI-powered digital humans, streaming, and video enhancement
- Protective metal backplate and PCB coating for dust, moisture, and corrosion resistance
- RGB lighting with full customization through GIGABYTE Control Center
- 4-year warranty upon registration for extended reliability
Specifications – AORUS GeForce RTX 5090 XTREME WATERFORCE 32G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5090 |
| Core Clock | 2655 MHz (Reference: 2407 MHz) |
| CUDA Cores | 21,760 |
| Memory Clock | 28 Gbps |
| Memory Size | 32GB |
| Memory Type | GDDR7 |
| Memory Bus | 512-bit |
| Card Bus | PCI-E 5.0 |
| Max Digital Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=245mm, W=146mm, H=36mm (ATX) |
| DirectX / OpenGL | DirectX 12 / OpenGL 4.6 |
| Recommended PSU | 1000W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | 360mm radiator, 3x 120mm ARGB fans, WATERFORCE AIO |
| Tube Length | 460mm ± 1.5% |
| Accessories | Quick guide, warranty registration, 12V-2×6 to 4x PCIe 8-pin adapter, AORUS stickers |
| Warranty | 4 Years (with registration) |
Conclusion
The AORUS GeForce RTX 5090 XTREME WATERFORCE 32G is not just a GPU—it’s a complete performance ecosystem. Designed for gamers who demand ultra-immersive visuals and creators who need uncompromising reliability, this card pushes the boundaries of PC hardware. With liquid cooling efficiency, AI-accelerated rendering, and future-proof specifications, it stands as one of the most powerful and visually striking GPUs on the market.
