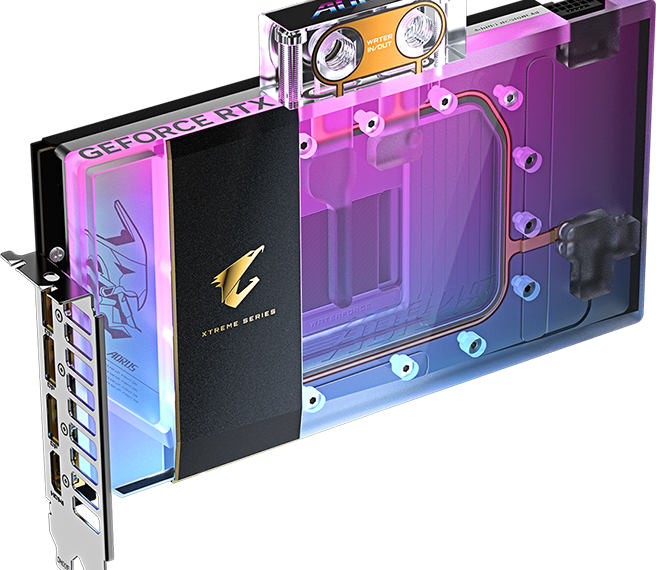

The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G is a flagship GPU tailored for PC enthusiasts and custom loop builders. Built on NVIDIA’s cutting-edge Blackwell architecture, it packs 21,760 CUDA cores, a 2655 MHz boost clock, and 32GB of next-generation GDDR7 memory on a massive 512-bit interface. With its WATERFORCE water block cooling system, patented leak detection, and ultra-premium design, this card blends raw power with luxury craftsmanship for those who want uncompromised performance and aesthetics.
Key Features
- NVIDIA Blackwell architecture with DLSS 4 and AI-powered rendering
- 32GB GDDR7 memory at 28 Gbps with 512-bit bus
- 21,760 CUDA cores delivering breakthrough graphics and compute performance
- 2655 MHz boost clock for extreme overclocking potential
- WATERFORCE custom water block cooling system with microchannel design
- Patented leak detection for added safety in custom loops
- All-covered copper base plate and server-grade thermal gel for superior heat transfer
- Fourth-gen ray tracing cores with neural rendering for lifelike visuals
- NVIDIA Reflex 2 for ultra-low latency responsiveness
- NVIDIA Studio and ACE support for creators and AI workflows
- RGB lighting system with full customization via GIGABYTE Control Center
- Backed by a 4-year warranty with registration
Specifications – AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5090 |
| Architecture | NVIDIA Blackwell |
| Core Clock | 2655 MHz (Reference: 2407 MHz) |
| CUDA® Cores | 21,760 |
| Memory Clock | 28 Gbps |
| Memory Size | 32 GB |
| Memory Type | GDDR7 |
| Memory Bus | 512-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=235mm, W=172mm, H=29mm |
| PCB Form | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
| Recommended PSU | 1000W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | WATERFORCE water block |
| Accessories | Quick guide, warranty registration, 12V-2×6 to 4x PCIe 8-pin adapter, AORUS identity sticker, AORUS metal sticker, WATERFORCE installation guide, thermal grease |
| Special Feature | Patented leak detection system |
| Note | Use non-corrosive coolant |
Conclusion
The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G is more than just a graphics card—it’s a statement piece for high-end custom water-cooled builds. With its massive CUDA core count, next-gen GDDR7 memory, and premium water block cooling, it delivers unparalleled performance for gamers, creators, and AI developers. Add in leak detection, ultra-durable components, and a 4-year warranty, and this GPU stands as one of the most advanced and future-ready solutions available.
