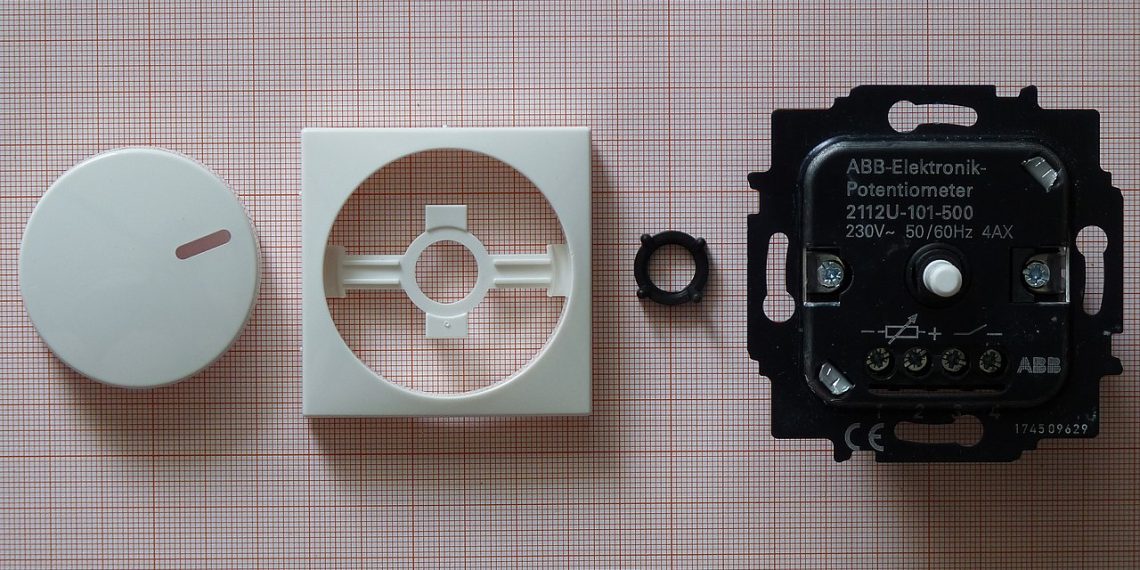

0–10 V lighting control is one of the earliest and simplest forms of electronic dimming systems, used to regulate the brightness of fluorescent and LED lighting. The system operates by transmitting a direct current (DC) voltage signal between 0 and 10 volts, corresponding directly to the light output level. Two key standards exist within this system: current sourcing and current sinking, each determining how voltage and control signals are transmitted and interpreted.
Current Sourcing
In a current sourcing configuration—common in commercial and theatrical lighting—the controller sends out a DC voltage signal to connected lighting fixtures.
- At 10 V, the lighting operates at 100% brightness, and at 0 V, the light is completely off.
- Intermediate voltages adjust brightness proportionally between these two extremes.
- Different dimming devices can interpret these voltages using various response curves, such as linear for voltage, power, or perceived light output.
Receivers in a current sourcing setup generally have an input impedance of 100±20 kΩ, corresponding to about 1 mW of power consumption at 10 V.
Historically, 0–10 V systems were replaced by analog multiplexed protocols like D54 and AMX192, later succeeded by DMX512, which remains a digital industry standard. However, in the 2010s, 0–10 V dimming re-emerged as a popular method for LED flat panel lighting, particularly in commercial buildings.
Current Sinking
In current sinking control, more commonly used in architectural lighting, the ballast or driver provides a constant 10 V DC reference. The controller then reduces the return voltage sent back to the light fixture.
- When the full 10 V is returned, the light shines at full brightness.
- If no voltage is returned, the light dims to its lowest setting or turns off completely.
This design is inherently fail-safe—if a control wire is severed or a controller fails, the light will default to full brightness.
The circuit usually includes a resistor-based voltage divider, allowing variable resistance to control voltage. Many modern systems substitute the variable resistor with an electronic switch controlled by a Pulse Width Modulation (PWM) signal, where brightness depends on the ratio of on/off switching intervals.
For example:
- A PWM signal that is “off” 10% of the time equates to a 1 V control signal, resulting in dimmed light output.
- Multiple lights can be controlled in parallel using the same PWM signal.
However, some LED fixtures (especially low-cost models) do not respond accurately to fast-changing or pulsed signals, leading to flicker or delayed dimming response.
System Components and Operation
A standard 0–10 V dimming system includes:
- Control Module or Dimming Interface – Generates or interprets the 0–10 V signal.
- Driver or Ballast – Converts control voltage to actual light intensity.
- Line Power Relay – Often integrated or external, used to completely shut off lights when dimmed to 0%.
Some devices—known as “Blink’n’Dim” adapters—can generate a 0–10 V control signal in response to rapid power switch toggling, allowing retrofitting into traditional wiring systems without installing extra control lines.
Advantages
- Simplicity: Easy to design, install, and troubleshoot.
- Compatibility: Works with many dimmable fluorescent and LED drivers.
- Low Power Consumption: Typically only 1 mA, allowing long cable runs.
- Reliability: Analog control ensures smooth, continuous dimming without complex digital protocols.
Disadvantages
- Wiring Complexity: Requires one control wire per lighting channel plus a common ground, leading to bulky wiring in multi-zone systems.
- Voltage Drop: Over long distances, voltage loss can cause dimming inconsistencies unless properly calibrated.
- Signal Interference: Nearby AC power cables may induce flickering due to capacitive coupling; shielded cables are often necessary.
- Limited Flexibility: Analog systems lack the digital features of protocols like DALI or DMX512, such as addressing, scene control, or feedback monitoring.
Modern Applications
Despite newer digital alternatives, 0–10 V control remains widely used in commercial, industrial, and architectural lighting due to its cost-effectiveness, simplicity, and broad manufacturer support. It is especially common in LED panel lighting, office fixtures, warehouses, and retail spaces, where fine control of brightness is essential but complex networking is unnecessary.
